TCK5.0G, 5.08 series female connector

TCK5.0G/5.08 series female connector

model

TCK5.0G-XXP; TCK5.08-XXP

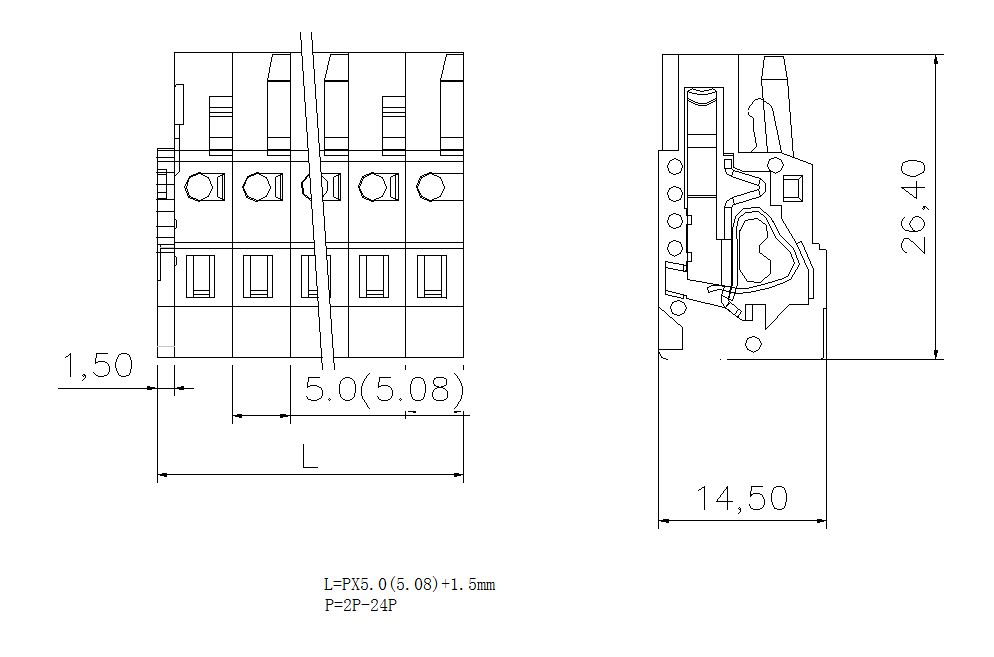

bit spacing

5.0mm/5.08mm

number of digits

2-24P

Wiring range

AWG/mm 2

24-14/0.2-2.5

Technical data


IEC

UL

Rated voltage

V

250

300

Rated current

A

16

15

Rated impulse voltage

KV

4

pollution level

3

Insulation Materials

PA66

Flammability rating

V0

Applicable ambient temperature

– 40℃~+105℃

can choose colour

5.0 pitch (grey); 5.08 pitch (orange)

Contact material

Phosphor bronze tinned

Shrapnel material

Stainless steel

Wiring

spring clip

Applicable lead

0.2-2.5 mm 2 types of conductors

Stripping length

8-9mm/ 0.33in







TC01(5.0): Crimping tool, made of insulating material, 1 pin, off-white



TC02(5.0): Crimping tool, made of insulating material, 1 pin, off-white



TC03(5.0): Jumper bridge, made of metal parts of insulating material, 2 pins, grey
