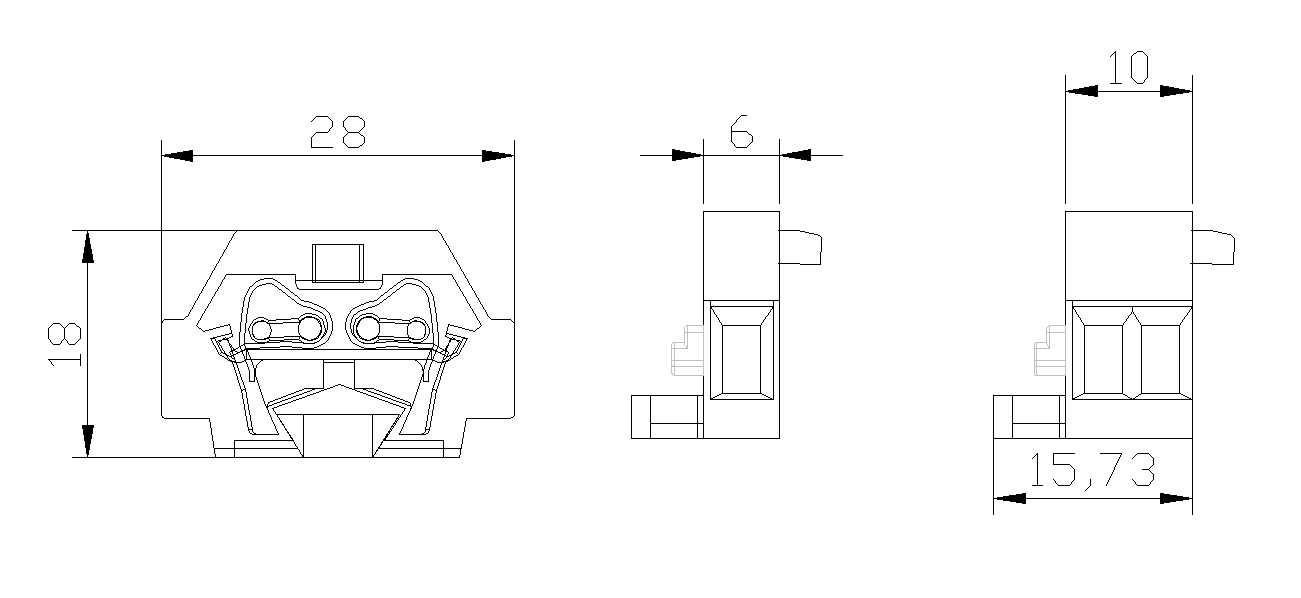

TW2-420 Series Miniature Terminal Strip Holder
model | TW2-420 | ||
Wiring range | AWG/mm 2 | 24-14/0.2-2.5 | |
Technical data | IEC | UL | |
Rated voltage | V | 500 | 300 |
Rated current | A | twenty four | 15 |
Rated impulse voltage | KV | 6 | |
pollution level | 3 | ||
Insulation Materials | PA66 | ||
Flammability rating | V0 | ||
Applicable ambient temperature | – 40℃～+105℃ | ||
can choose colour | grey, white grey, orange, yellow, chartreuse | ||
Contact material | Phosphor bronze tinned | ||
Shrapnel material | Stainless steel | ||
Wiring | spring clip | ||
Applicable lead | 0.2-2.5 mm 2 types of conductors | ||
Stripping length | 8-9mm/ 0.33in | ||
TW1-4 /TW2-4/ TW3-4 : jumper bridge, made of metal parts of insulating material, 2 pins, grey
TW1-2/TW2-2/TW3-2: end plate; with retaining lugs; gray
